Chassis

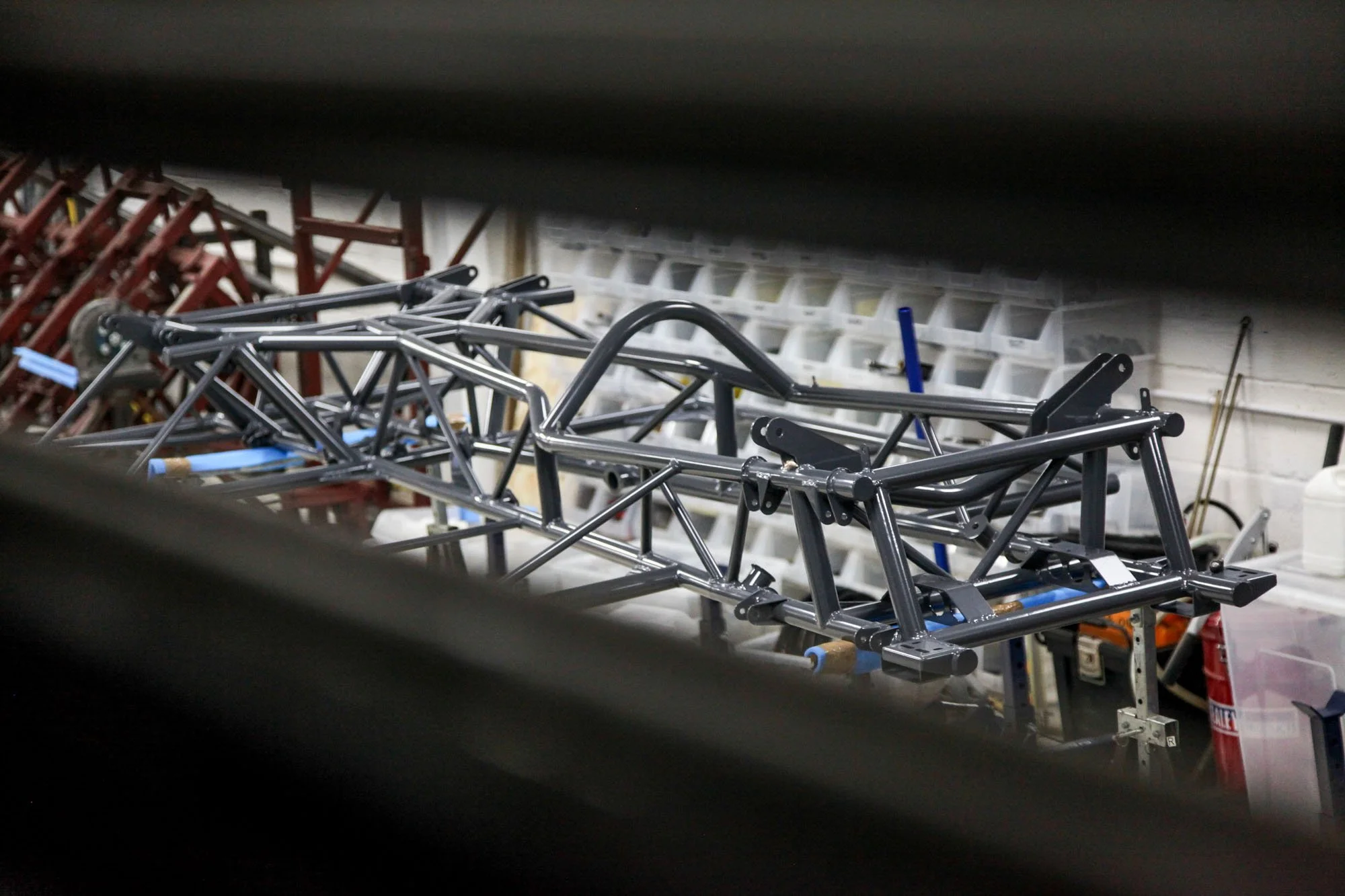

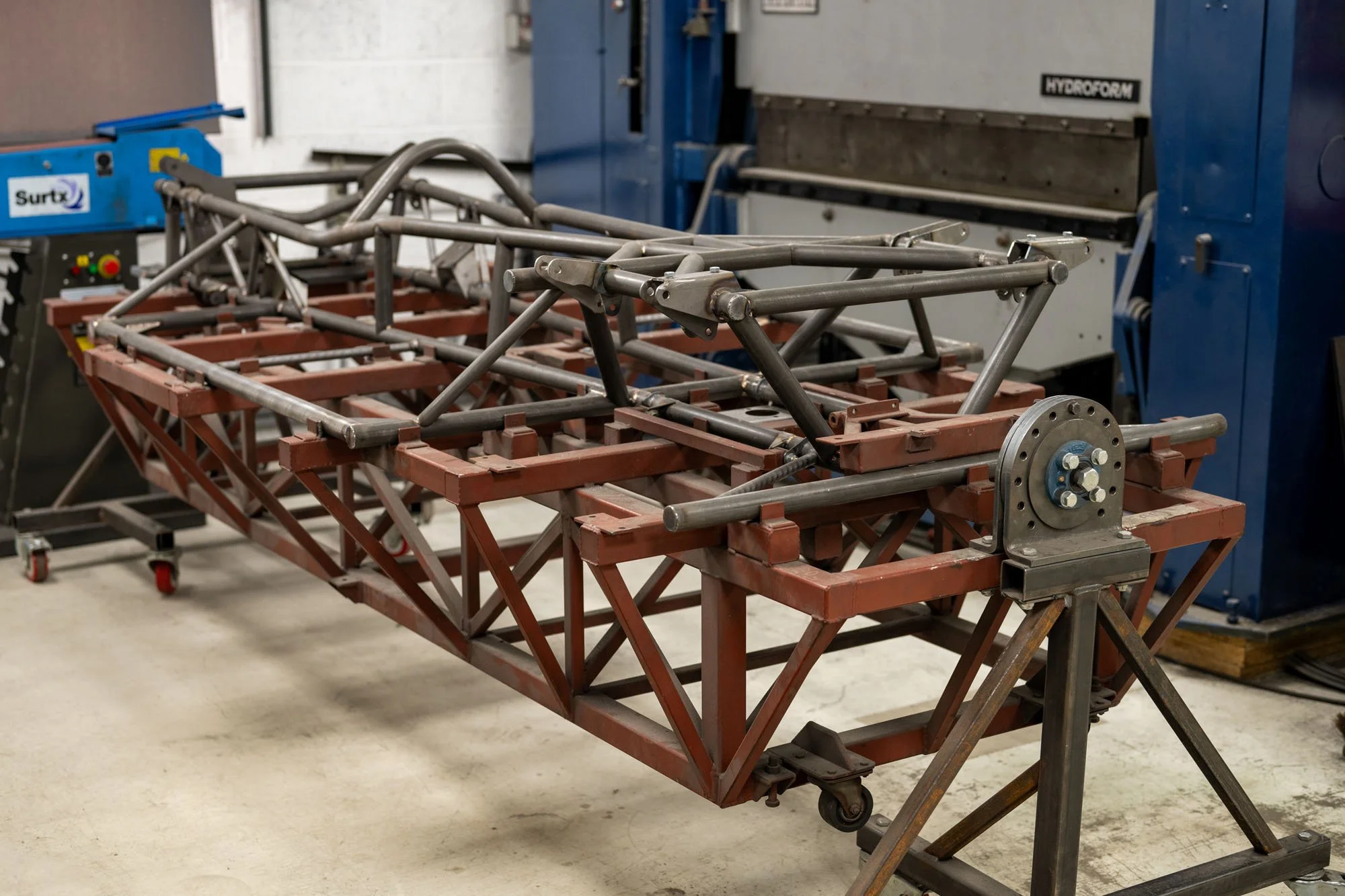

We manufacture TVR Grantura MK3 and TVR Griffith 200/400 chassis. Our chassis jig is the John Thurner factory pattern made adjustable. This allows us to fabricate custom chassis to fit alternative or bespoke bodyshells.

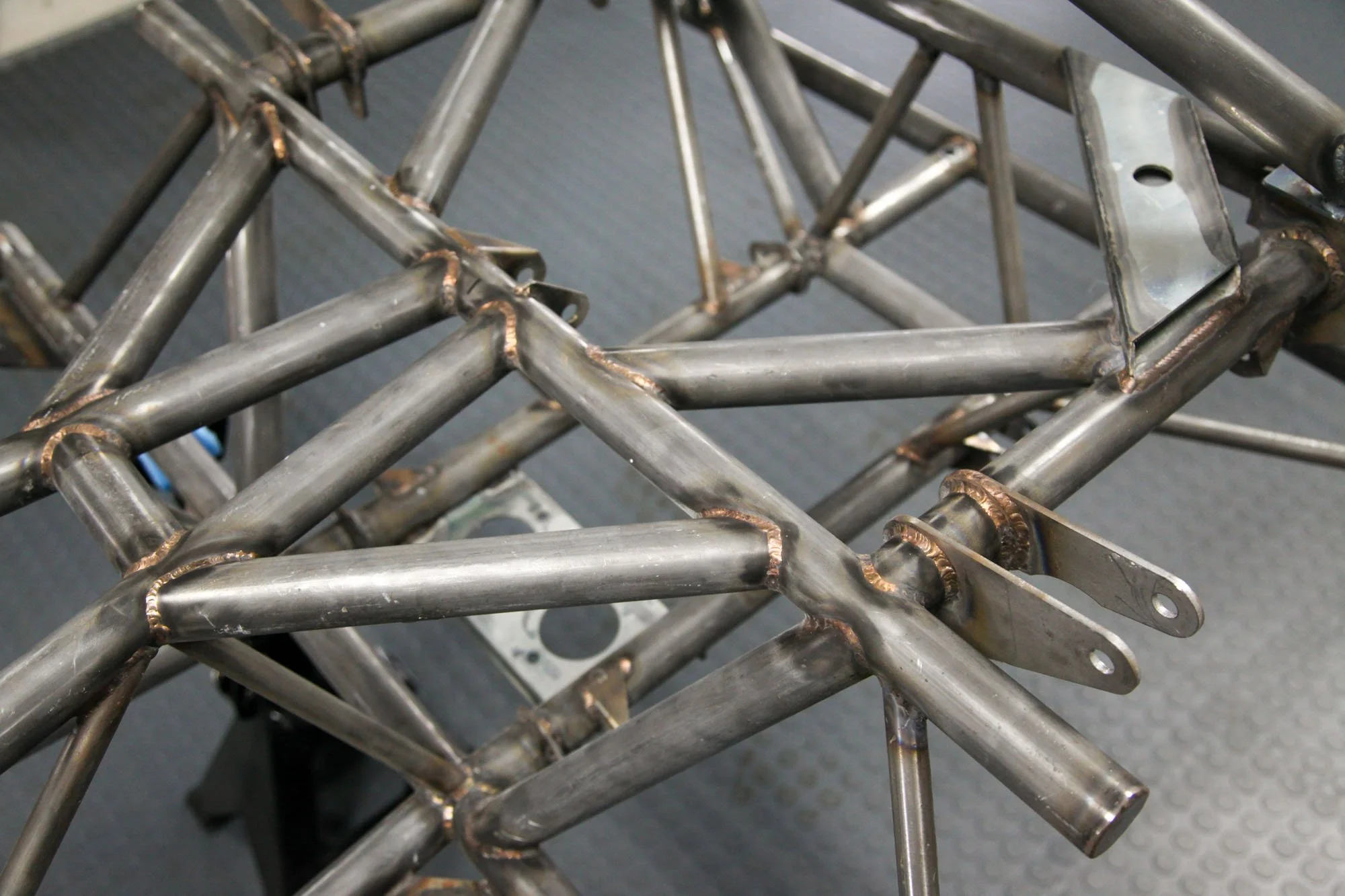

Chassis tubes are hand scalloped for a close tolerance fit in our jig before being fully TIG welded using silicon bronze. We use high quality cold drawn seamless tube (CDS) which, depending on your specification, can be three to six times the tensile strength of the factory tube used in the 1960s.
Brackets are precision CNC laser cut and folded from our CAD models, giving us consistent close tolerance parts.
Mounts for FIA roll cages, seating, steering and accessories are tailored to individual requirements.
Vehicle Dynamics Analysis has enabled us to optimise our chassis together with steering, anti-roll bar, wishbones and suspension. The VDA data applied as standard to our road and race chassis has proved to dramatically improve handling, driver confidence and performance straight out of the box.
Please allow 6 weeks build time from order confirmation date.
Please contact us for a quote.
